ZEISS VISUPHOR 500 - Digital Phoropter
Skillful determination of best-corrected visual acuity can be time-consuming, requiring operator experience and various fine adjustments. It is well worth the effort when the result is perfect vision correction, a superior viewing experience and highly satisfied patients – as with the digital phoropter VISUPHOR® 500 and the acuity chart systems VISUSCREEN 100 and VISUSCREEN 500 from ZEISS. Combining comfort and convenience with speed and efficiency, they offer refraction specialists a sophisticated, modular solution.
VISUPHOR 500 is available only in combination with VISUSCREEN 100 or VISUSCREEN 500.
- Description
-
Made to assist your expertise
Simplicity best describes the handling experience of the ZEISS subjective refraction system. Its clear, uncluttered user interface puts the control elements you need directly at the centre of focus. The system is operated via iPad. Thanks to its WLAN capabilities, cables are kept to a minimum, allowing you to completely concentrate on the refraction procedure.
- > Select patients from a daily worklist or simply start the refraction
- > Upload presets from ZEISS autorefractors and lensmeters or access input from a patient database
- > Choose from a wide range of optotypes and preconfigure your favorite test workflow.
Smart workflow
The ZEISS VISUPHOR 500 enables preconfigured workflows. Thereby, settings for each test are optimally adjusted, fully automatically, making standard refraction tests simple and fast. Settings and workflows can also be individually configured in the freestyle mode. Patient contact with the headrest is continuously monitored and displayed on the screen.
iPad and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark of Cisco Technology Inc., registered in the U.S. and other countries.
- Technical Data
-
Notice: iPad and iPad Air are trademarks of Apple Inc., registered in the U.S. and other countries. iOS is a trademark of Cisco, registered in the U.S. and other countries.ZEISS VISUPHOR 500 Technical data Spherical lenses –19.00 to +16.75 D (increments: 0.12 / 0.25 D) Cylinder lenses 0 to ± 8.75 D Cylinder axis 0 to 180° (increments: 1° steps) PD 48 to 80 mm Rotary prism 0 to 20 ∆ Retinoscopy +1.5 D, +2.0 D Pin hole lens 2 mm Maddox rod Right eye: red, horizontal / left eye: red, vertical Red/green filter Right eye: red / left eye: green Polarizing filter Right eye: 135°, 45° / left eye: 45°, 135° Split prism Right eye: 6 ∆ BU
Left eye: 10 ∆ BI (up to 5 ∆ complement)Line voltage 100 – 120 / 200 – 240 V AC
± 10%, 50…60 HzPower consumption 145 VA Dimensions (W x H x D) 361 x 280 x 108 mm Weight 5 kg Interfaces 2 x RS232 / Bluetooth System requirements iPad or iPad Air with iOS 11 or better - Standard Delivery Package
-
The standard delivery package for the ZEISS VISUPHOR 500 includes:
1 VISUPHOR 500 1 Junction box 1 Bluetooth adapter 1 power cable 1 near point chart 70cm incl. near sight chart Mounting adapters for phoropter arm Spare parts for forehead and face rest Dust cover - FAQ
-
- Further Information
-

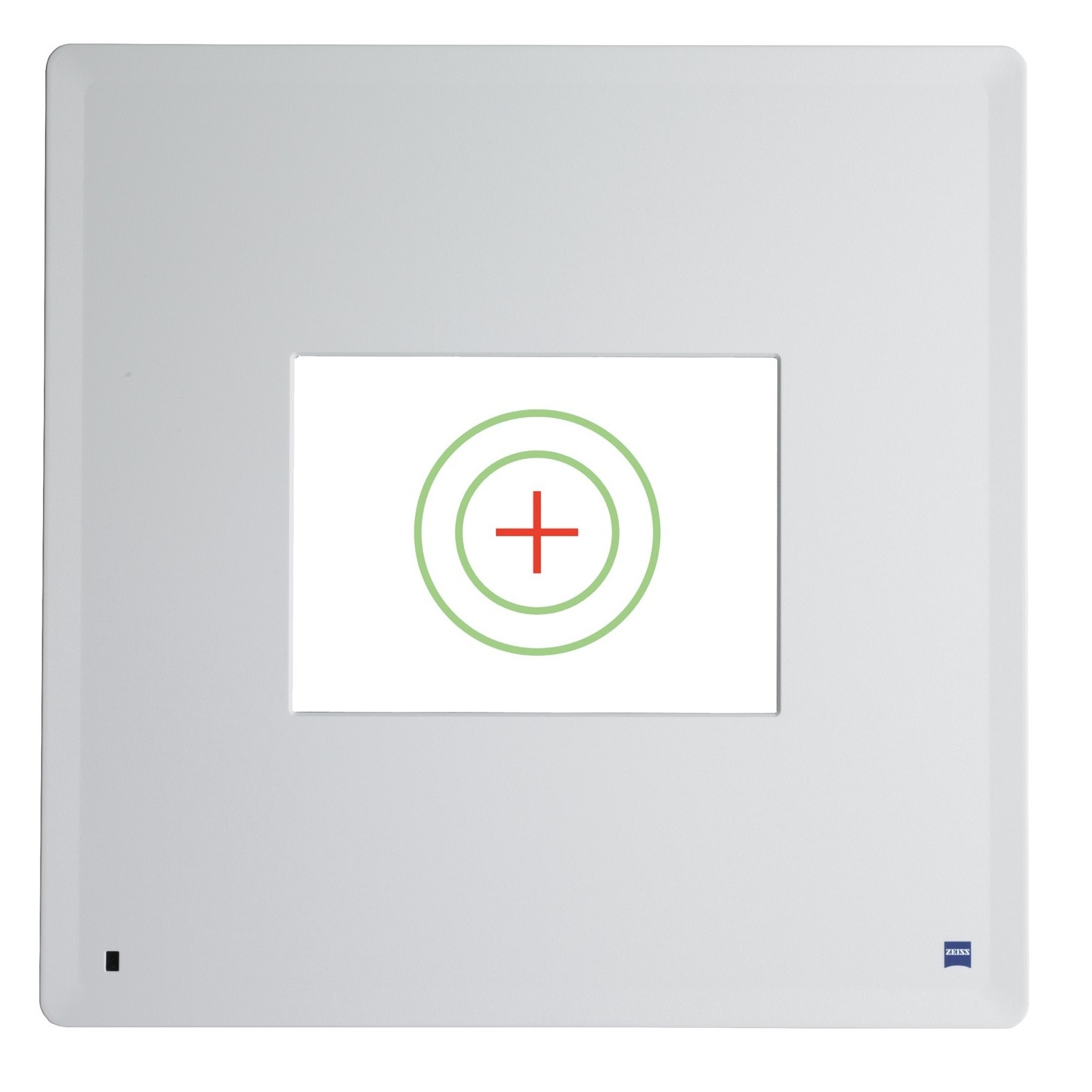

Learn more about the VISUSCREEN 100/500 from ZEISS:
