  5. ZEISS Slit Lamp 120 for Instrument Table

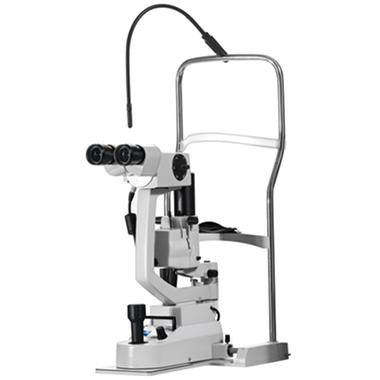

ZEISS Slit Lamp 120 for Instrument Table product photo

ZEISS Slit Lamp 120 for Instrument Table

Product ID: 266002-1155-717p
Sharp versatility

Operational convenience as well as outstanding optical and mechanical performance make the ZEISS SL 120 slit lamp a powerful all-rounder with great application flexibility. This highly durable and reliable instrument provides detailed, contrast-rich images for accurate and efficient eye examination – all day, every day. It can be easily upgraded to support additional applications.
Prices visible after login

Outstanding performance
> Excellent optical transmission with high-resolution, high-contrast images for all eye examinations
> Large 14 mm illuminated field for observation of the entire anterior segment
> Stereo microscope with 5 magnification steps for convenient observation from overview to detail
> Highly durable for reliable daily use over many years

Excellent operation and flexibility
> Single-handed operation and ergonomic design support a comfortable body posture throughout the procedure
> Intuitive, precise joystick operation, quick action brake and easy-grip controls
> Choice of parallel or convergent tube
> Tiltable prism head* to reduce reflections during contact lens examinations

Additional applications
> SL Imaging Module for convenient documentation of clinical findings and patient consultation
> Applanation tonometer* (two versions: AT 020 & AT 030) for precise intraocular pressure measurement
> 10x eyepiece* for easy assessment of clinical findings such as length and angle measurement

* Option

Technical Data
ZEISS SL 120
  Technical data
Magnification 5x, 8x, 12x, 20x, 32x with 10x eyepieces
6x, 10x, 16x, 25x, 40x with 12.5x eyepieces
Field of view diameter 40 … 6 mm with 10x eyepieces
31 … 5 mm with 12.5x eyepieces
Eyepiece magnification Optionally 10x or 12.5x super high-eyepoint eyepieces, compensation of ametropia ±8 D
Width of slit image Continuous from 0 to 14 mm
Length of slit image In steps 0.3 / 3.5 / 8 / 14 mm; continuous 1 … 6 mm
Rotation of slit image Continuous ±90°
Decentration of slit image ±4° horizontally, click stop at 0°
Swivel range of slit projector 180°, scale for angular difference; click stops at -10° / 0° / +10°
Angle of incidence 0°; 0° … 20° tiltable with tiltable prism head*
Filters Blue, green (red-free), swing-in; heat-reflecting filter, permanently integrated; diffusing screen, swing-in
Free working distance
exit prism/patient’s eye
65 mm / 2.5 in
Travel of instrument base 30 mm (vertical) / 1.2 in (vertical)
110 mm (lateral) / 4.3 in (lateral)
90 mm (axial) / 3.5 in (axial)
Vertical travel of headrest 59 mm / 2.3 in
Projection illumination 6 V / 20 W halogen lamp
Brightness Continuously adjustable
Rated voltage 100 … 240 V ±10%, self-sensing, 50 / 60 Hz
Weight Basic instrument 9.75 kg (21.49 lbs); headrest 1.25 kg (2.76 lbs)
Dimensions of basic instrument
(W x H x D)
300 mm x 430 mm x 355 mm
11.8 in x 16.9 in x 13.9 in
* Option

Important notice: Please refer to the product brochures available in the tab “More information” to view the complete list of technical specifications, especially regarding the SL Imaging Module and its minimal requirements for computer hardware.
Standard Delivery Package
The standard delivery package for the SL 120 includes:
1 SL 120 for instrument table
1 headrest with chin cup
1 prism head, tiltable 0-20°
1 power cord, 2.5 m
1 bracket for AT 020
2 10x eyepieces, high eyepoint
1 focus rod
1 power supply
1 dust cover
1 external fixation target
1 paper for chin cup, 100 pcs.
