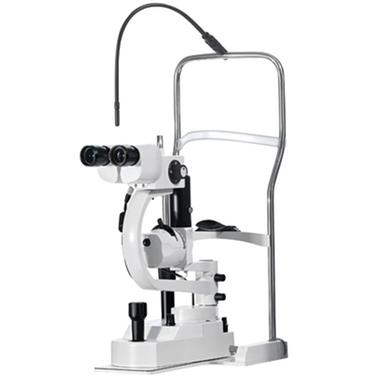

ZEISS Slit Lamp 115 for Instrument Table product photo

ZEISS Slit Lamp 115 for Instrument Table

Product ID: 266002-1125-676k
Focus on the essentials

A straightforward instrument focused strictly on the essentials – the ZEISS SL 115 Classic slit lamp delivers outstanding optical and mechanical performance and combines affordability, superb precision and reliability. Its convenient, single-handed, practice-oriented operation can be further enhanced with an integrated imaging solution as well as other optional accessories to support additional applications.
Prices visible after login

Outstanding optical performance
> Large illuminated field with fully rotatable 14 mm slit for superb view of the entire anterior segment
> Slit images with high-contrast resolution and exceptional detail for reliable examinations and contact lens fittings
> 3 magnification levels for precise observation from overview to detail
> Highly durable engineering design

Simple operation
> Auto-sensing power supply and immediate plug-and-play readiness
> Integrated swing-in yellow filter for fluorescence examinations
> Single hand operation for precise slit adjustments
> Integrated filters for increased contrast, red-free observation and fluorescence
> Compact, practice-oriented design for short working distances and easy access to the patient‘s eye

Additional applications
> SL Imaging Module* for convenient documentation of clinical findings and patient consultation
> AT 020 applanation tonometer* for precise intraocular pressure measurements
> 10x eyepiece* for easy assessment of clinical findings such as length and angle measurement


Technical Data
ZEISS SL 115 Classic
  Technical data
Magnification 8x, 12x, 20x with 10x eyepieces
Field of view diameter 25 … 10 mm
Eyepiece magnification Super high-eyepoint eyepieces 10x; compensation of ametropia ±8 D
Width of slit image Continuous from 0 to 14 mm
Length of slit image In steps 0.5 / 3.5 / 8 / 14 mm; continuous 1 … 14 mm
Rotation of slit image Continuous ±90°
Decentration of slit image ±4° horizontally, click stop at 0°
Swivel range of slit projector 180°, scale for angular difference; click stop at 0°
Angle of incidence
Filters Blue, green (red-free), swing-in; heat-reflecting filter, permanently integrated; diffusing screen, swing-in; barrier filter (yellow)
Free working distance
exit prism/patient’s eye
73 mm / 2.9 in
Travel of instrument base 30 mm (vertical) / 1.2 in (vertical)
110 mm (lateral) / 4.3 in (lateral)
90 mm (axial) / 3.5 in (axial)
Vertical travel of headrest 59 mm / 2.3 in
Projection illumination 6 V / 10 W halogen lamp
Brightness Continuously adjustable
Rated voltage 100 … 240 V ±10%, self-sensing, 50 / 60 Hz
Weight Basic instrument 9.75 kg (21.49 lbs); headrest 1.25 kg (2.76 lbs)
Dimensions of basic instrument
(W x H x D)
300 mm x 430 mm x 355 mm
11.8 in x 16.9 in x 13.9 in
Standard Delivery Package
The standard delivery package for the SL 115 Classic includes:
1 SL 115 Classic for instrument table
1 power cord, 2.0 m
1 fixation light
2 blinking diodes, red, for fixation light
1 occulting sleeve
1 paper for chin cup, 100 pcs.
